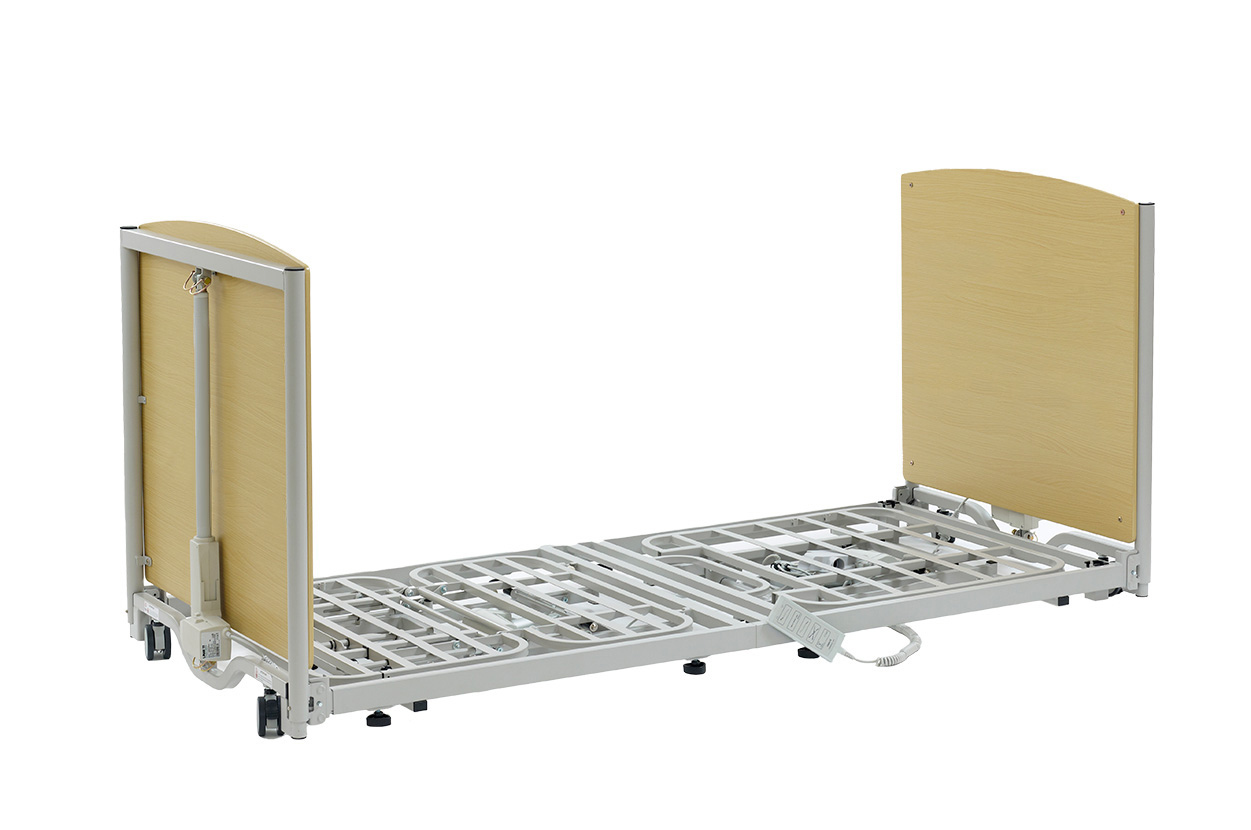

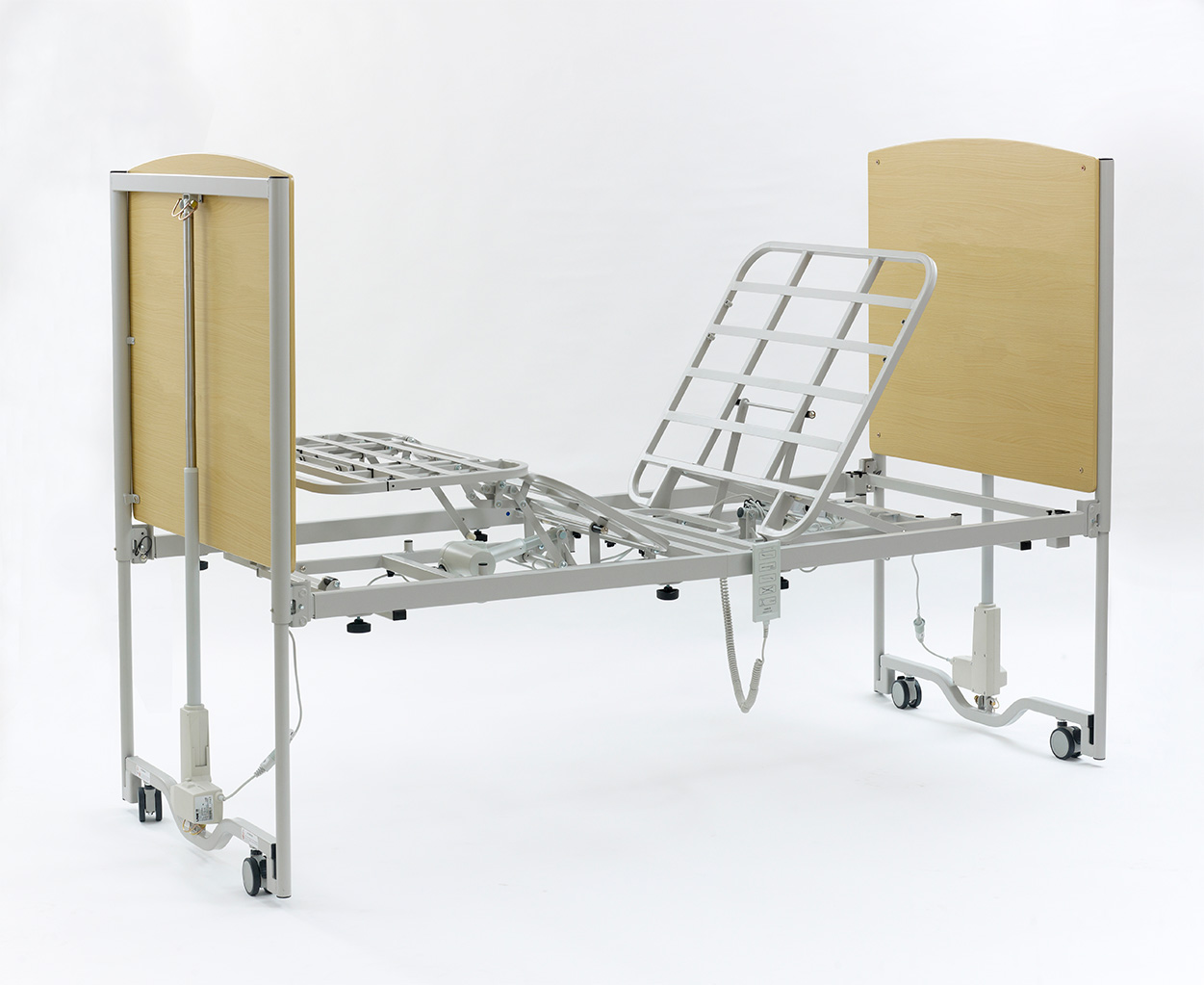

Apollo Super Low Single Panel

The Apollo Super Low Single Panel nursing bed offers an ultra-low platform height of just 10cm from the floor.

It is an electrically adjustable wooden bed with adjustable back rest and foot rest sections. The easy to use handset features a safety stop mechanism to help prevent entrapment under the bed frame when lowering below 30cm. In order to continue lowering the bed to the optimum 10cm the user must press a separate button. In addition to an Auto-contour Chair function that allows for effortless positioning and prevents the patient sliding down the bed, the Apollo Super Low Single Panel also features auto-regression, ensuring minimum pressure is placed on the sacrum region when the bed is profiled. The Apollo Super Low also has the added benefit of an integral extending section that allows the bed platform to be increased in length by 15cm.

  • Electrically operated backrest, height, tilt and knee break
  • Angle of back rest: 70°
  • Angle of thigh rest: 35°
  • Integral extending platform 15cm
  • Mattress platform dimensions: 198cm x 88cm or 213cm x 88cm (when integral extension piece is used)
  • Remote handset control
  • Individually lockable castors (castor diameter: 7.5cm)
  • Easy clean, low maintenance
  • Platform height at 10cm from the floor to top of the platform
  • Auto-contour function
  • Auto-regression function
  • Weight limit 180kg (28.3 stone)
  • 10cm to 70cm height variation
  • Trendelenburg tilt: 10.8° -  Anti-Trendelenburg tilt: 10.5°

  • Product Code: APH040
  • Max. User Weight Limit: 28.3 stone / 180 Kg
  • Bed Dimensions: 220cm x 103cm or 235cm x 103cm (when integral extension piece is used)
  • Mattress Platform Dimensions: 198cm x 88cm or 213cm x 88cm (when integral extension piece is used)
  • Max. Height Position: 70cm
  • Lowest Height Position: 10cm
  • Headboard Height from mattress platform: 83cm
  • Warranty: 5 years on metal work and 5 year electrical actuator
  • Carton sizes and weights:
  • 1/3 Frame = 107 x 92 x 24cm – 50.5kg
  • 2/3 Bed End = 109 x 99 x 13cm – 28.5kg
  • 2/3 Bed End = 109 x 99 x 13cm – 28.5kg
