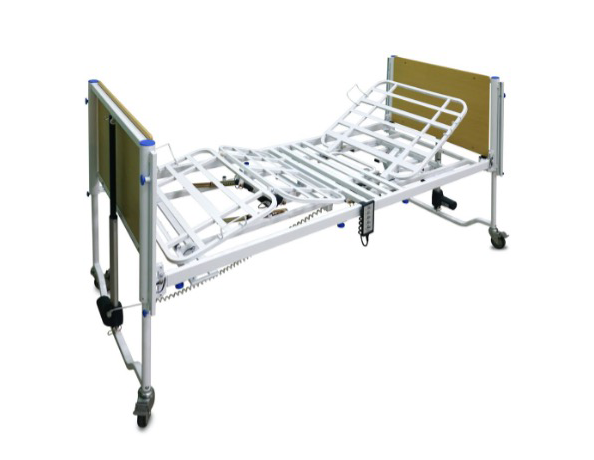

Apollo Proteus Plus
The Apollo Proteus Plus electric community bed, is easy to use, very competitively priced, and its space saving storage facility is of particular interest to Nursing, Care Home and Community environments. The clearly marked handset is simple to use for both carers and end users alike. Despite its unique foldaway design, this bed may be supplied with bed rails for added security.
The Apollo Proteus Plus electric community bed, is easy to use, very competitively priced, and its space saving storage facility is of particular interest to Nursing, Care Home and Community environments. The clearly marked handset is simple to use for both carers and end users alike. Despite its unique foldaway design, this bed may be supplied with bed rails for added security. The bed rails have integral extensions that can be used in conjunction with an additional mattress platform extension piece to increase the length of the mattress platform by 20cm.
- 4-section electric profiling with variable height control and adjustment
- Active auto-regression profiling reduces shear and friction in sacral area
- Integral bed extension of 200mm
- Reverse Trendelenburg - variable tilt positioning
- Handset control features a fob lockout
- Transport brackets attach to the bed to help prevent loss
- Maximum user weight 215kg (34 stone) – Safe working load 250kg (39.5 Stone)
| Overall length
|
2196mm
|
| Overall length (extended)
|
2396mm
|
| Overall width
|
1005mm
|
| Mattress platform
|
2000 x 888mm (2200 x 888 Extended)
|
| Height range
|
250 – 700mm
|
| Backrest angle
|
0-700
|
| Knee-break angle
|
0-330
|
| Calf raise angle
|
5-200
|
| Trendelenburg
|
120
|
| Reverse Trendelenburg
|
120
|
| Safe Working Load (SWL)
|
250kg / 39.5 stone
|
| Max patient weight
|
215kg / 34 stone
|
| Total bed weight
|
77kg
|
| Individual bed section weights:
|
|
| Head platform section
|
25kg (Including actuator) 23.4kg without
|
| Foot platform section
|
25kg (Including motor & actuator) 22.6kg without
|
| Bed ends
|
13.5kg each (2 pcs in total)
|
| Side rails
|
10.5kg each (2 pcs in total)
|
|
|
|
