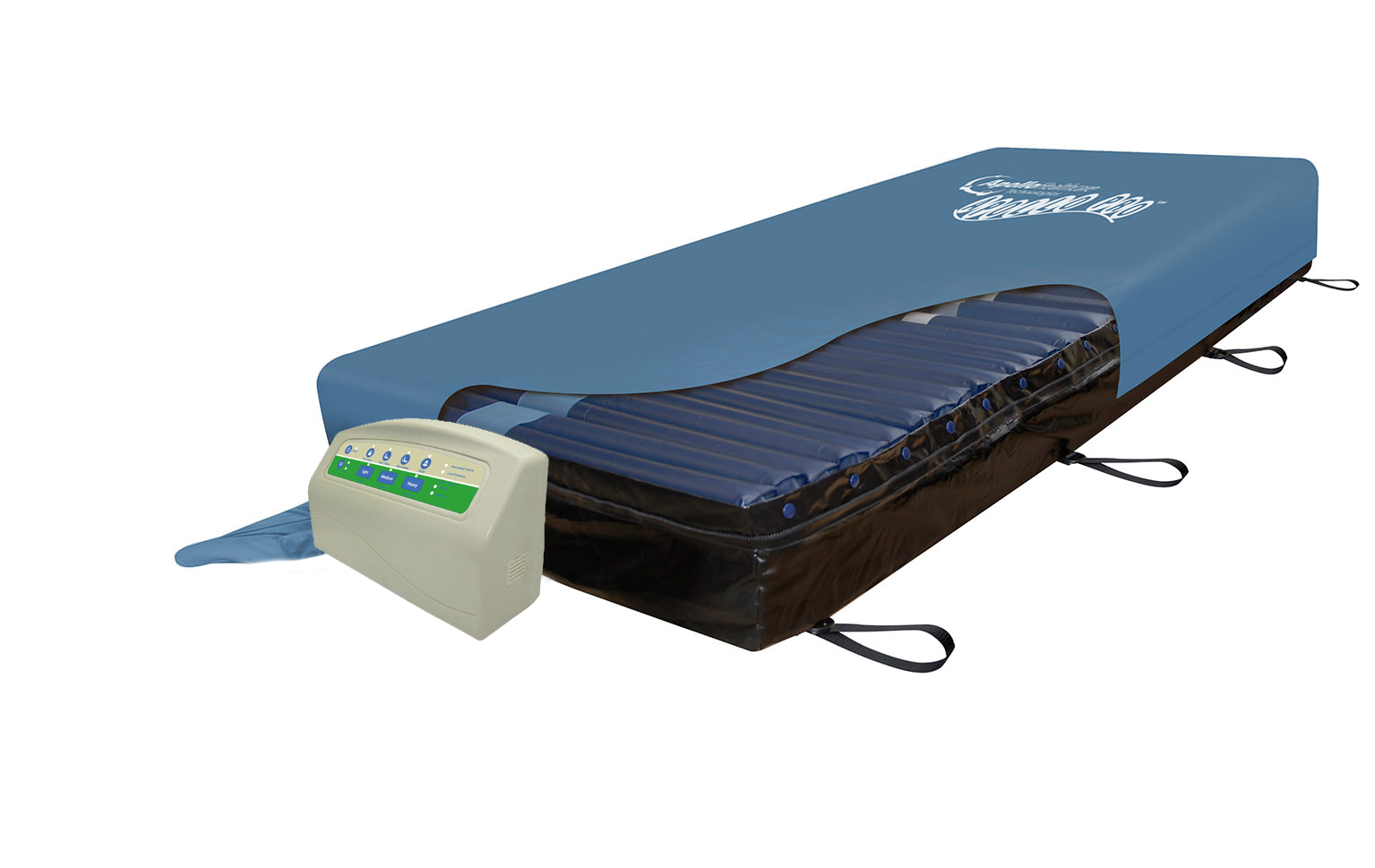

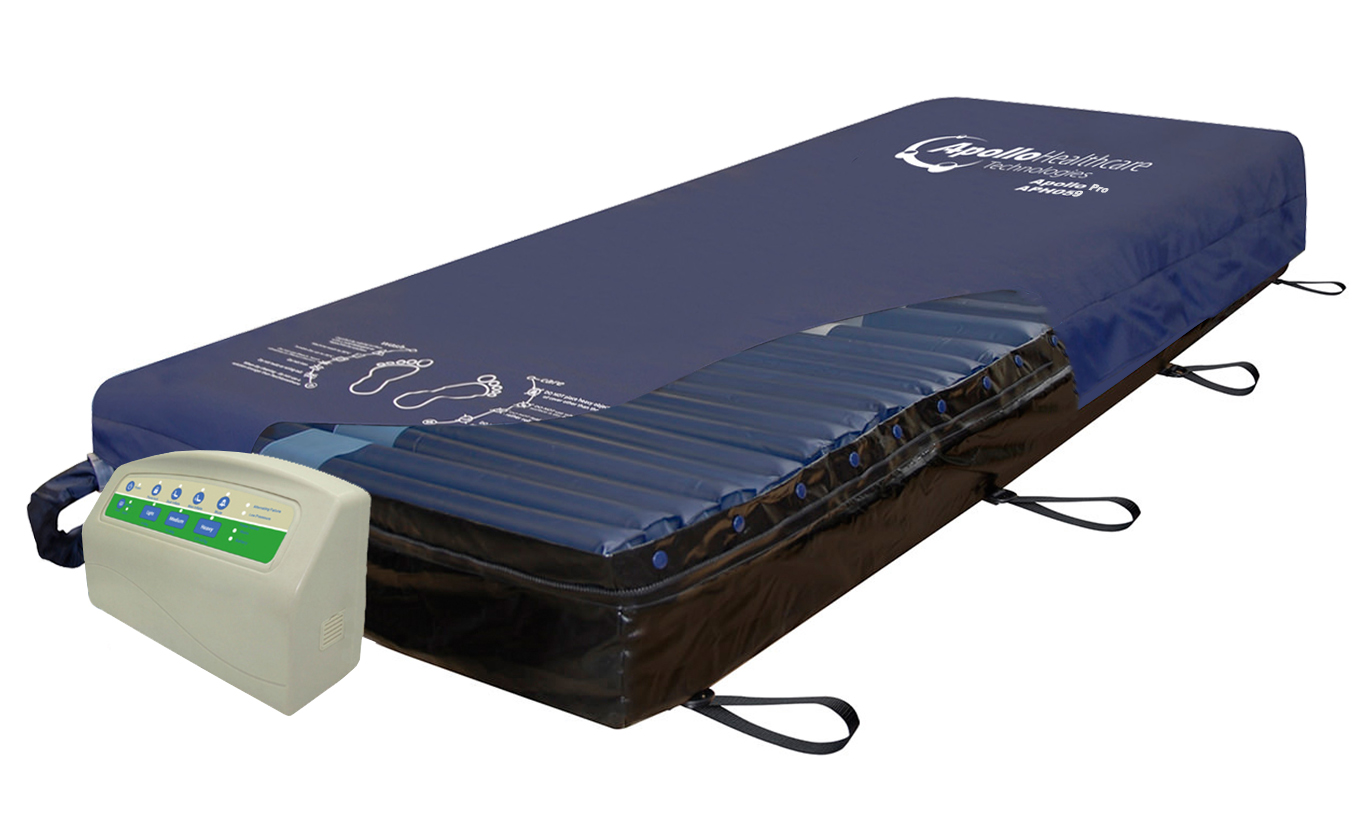

Apollo Pro™

The Apollo Pro dynamic mattress benefits from a uniquely designed cell configuration in order to ensure the best possible pressure relieving qualities. The patented cell technology offers a revolutionary 'Very High Risk' dynamic mattress, ensuring optimum patient comfort and safety.

The Apollo Pro also incorporates CLP constant low pressure and 8 hour battery back up.

  • 39 stone weight limit
  • Lithium-ion battery back-up for up to 8 hours incase of power failure.
  • Heel protector
  • Very high risk replacement mattress
  • ‘Cell in Cell’ replacement system with static base
  • Adjustable weight settings
  • Timed static switch to assist in patient transfer and for good nursing practise
  • Auto-lockout function
  • Designed for users at very high risk, or have existing tissue damage (pressure ulcer grade 1-4)
  • Manual adjustment for to user’s body shape and position for optimum pressure care
  • Dynamic  therapy for alternating action for lower interface pressures and gentle capillary stimulation
  • Humidity management to help prevention of tissue breakdown and skin maceration

  • Enhanced shear and friction protection
  • Autofirm option to inflate the mattress to maximum pressure to allow safe patient transfer
  • Alternating cycle time 10 minutes 1in2
  • Audio and visual alarms to differentiate between low pressure, power failure and system failure errors
  • CLP - Constant Low Pressure providing immersion therapy support surface below capillary closure providing increased comfort
  • Welded vapour permeable multi stretch PU cover to prevent fluid ingress and internal mattress contamination
  • Anti-bacterial impregnated PU fabric
  • Fire retardant to Standards BS7175 Crib 5
  • CPR function to ensure rapid deflation of mattress
  • The mattress cover can be wipe down or completely removed and laundered up to 95°C to aid decontamination protocols
  • Product Code: APH059
  • Max Weight Limit: 39 stone / 247.6 Kg
  • Min Weight Limit: 6 stone / 40 Kg
  • Risk Factor: Very High Risk
  • Warranty: 2 years
  • Cell Configuration:  3 static, 10 figure of 8 cells and 7 pairs of heel guard cells
  • Operating Cycle:  10 minutes
  • Pressure Range: 20-60 mmHg
  • Mattress Dimensions (inflated): 200cm x 88cm x 20cm
  • Mattress Weight: 9 Kg
  • Power Unit Dimensions:  37cm x 13.5cm x 25cm
  • Power Unit Weight: 4.2 Kg


  • EMC Standards:  CISPR 11 Class B, IEC 61000-3-2, IEC 61000-3-3,
  • IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
  • IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
  • Voltage: AC230V 50Hz
  • Noise Level: Below NC27
  • Fuse Input: 12w
  • Fuse: External
