Apollo 8™

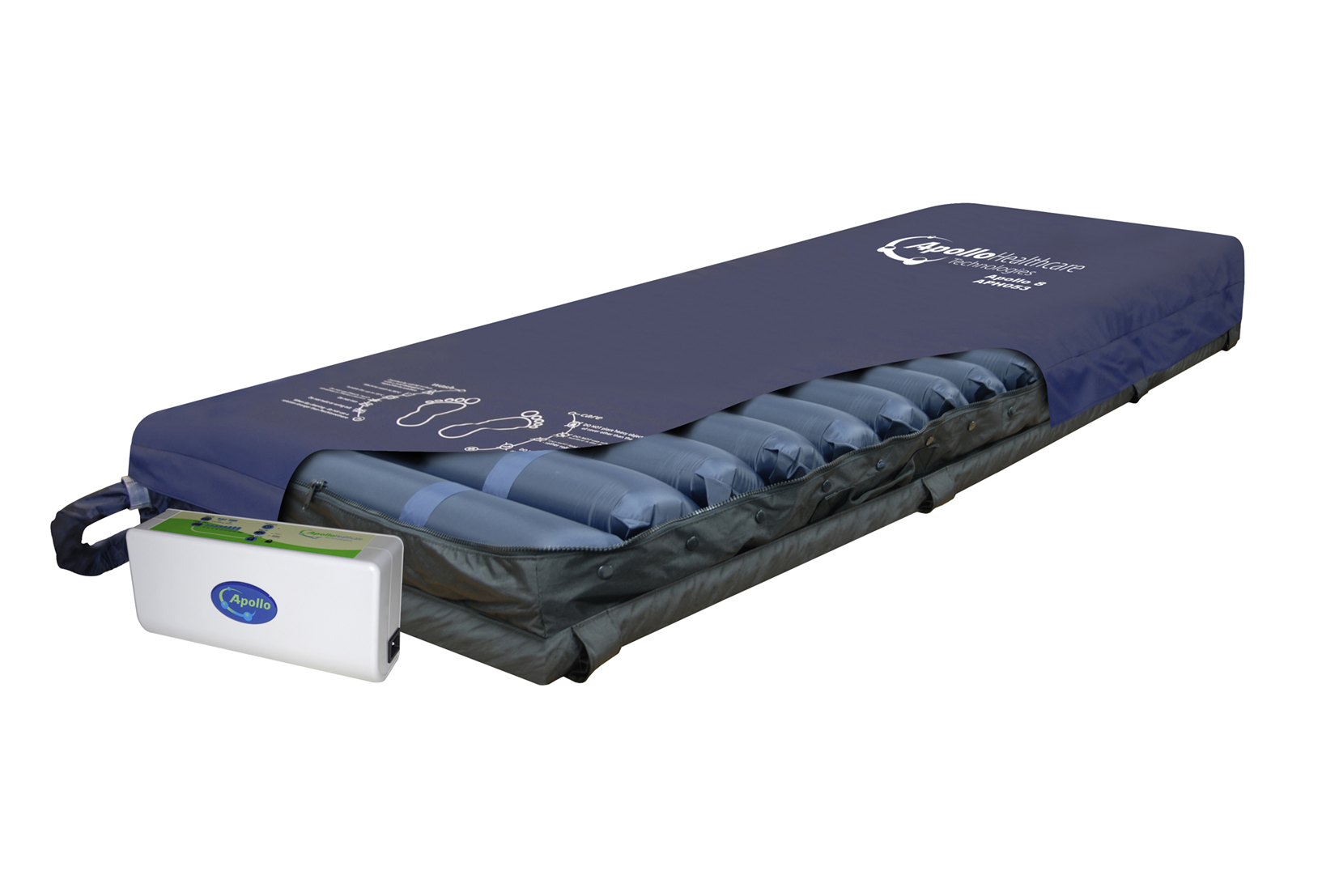

The Apollo 8 replacement mattress consists of 20 ‘figure of 8’ cells that is designed for users at a 'Very High Risk' of developing pressure ulcers, or have existing tissue damage.

The Apollo 8 replacement mattress consists of 20 ‘figure of 8’ cells that is designed for users at a 'Very High Risk' of developing pressure ulcers, or have existing tissue damage. The system includes a welded cover that is washable up to 95 degrees ensuring the strictest infection control policies are adhered to. The easy to use pump reduces the need for complex training.

  • 32 stones weight limit (203.2 Kg)
  • ‘Cell in Cell’ replacement air system with static base
  • Very high risk
  • Cells and cover can be removed and laundered
  • Adjustable weight settings
  • Audible and visual alarms
  • Timed static switch
  • Cable management loops
  • External filter
  • Designed for users at very high risk, or have existing tissue damage (pressure ulcer grade 1 to 4)
  • Manual adjustment to user's body shape and position for optimum pressure care
  • Dynamic therapy alternating action for lower interface pressures and gentle capillary stimulation
  • Humidity management to help prevent tissue breakdown and skin maceration
  • Enhanced shear and friction protection
  • PU cover to prevent fluid ingress and internal mattress contamination
  • Cover is easy to remove for easier cleaning
  • Clinically effective against bacteria/viruses, with proven resistance to MRSA
  • Waterproof with high vapour permeability for improved infection control
  • Fire retardant to Standards BS7175 Crib 5
  • Static Mode enables stable surface for safer patient transfers & handling

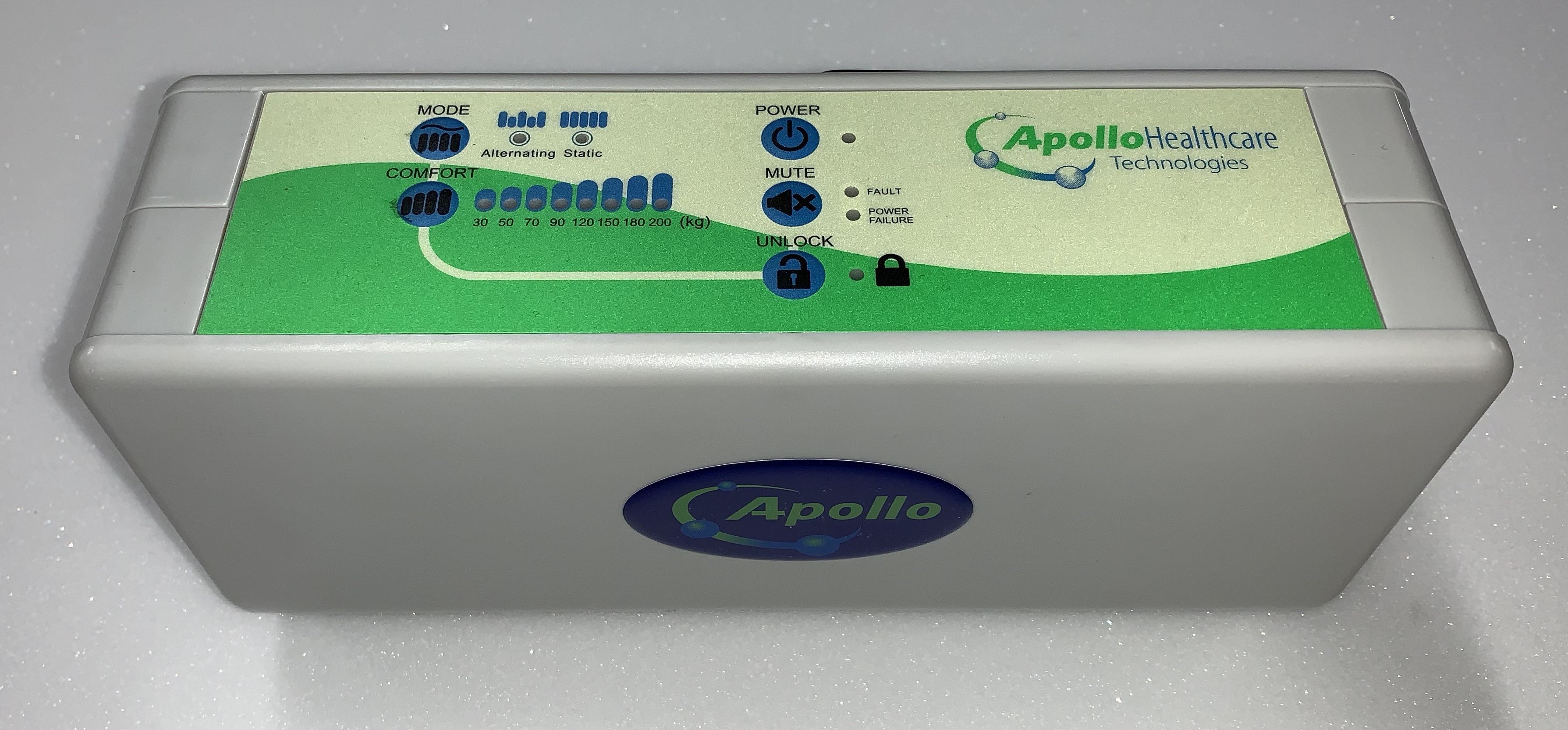

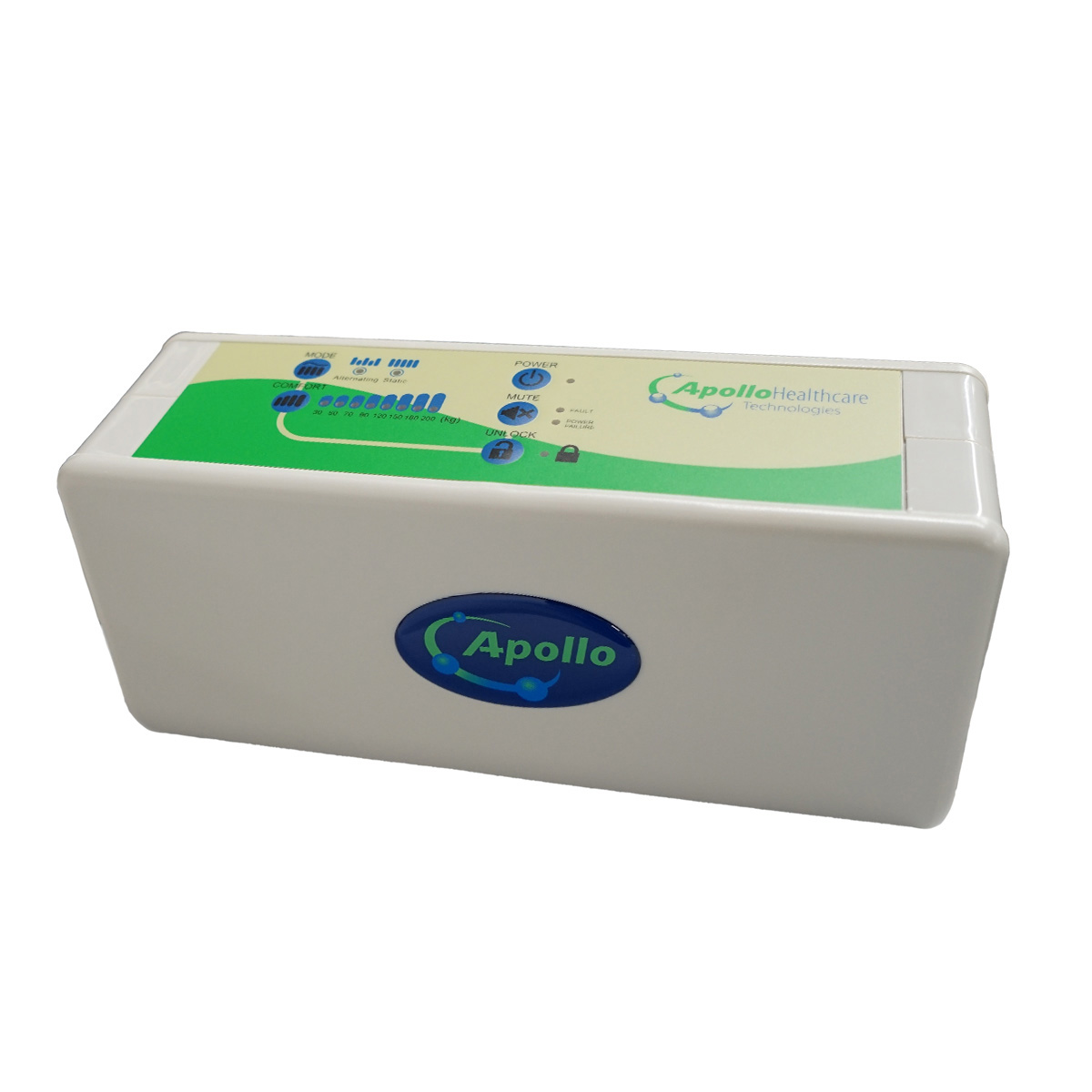

  • Clear and simple controls reduces need for complex training
  • External air filter for easier maintenance
  • Removable cells and connectors for lower cost servicing and repair

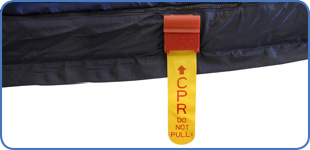

  • Quick access CPR for emergency mattress deflation
  • The mattress cover can be wipe down or completely removed and laundered up to 95°C to aid decontamination protocols
  • Product Code: APH053
  • Max. Weight Limit:  32 stone / 203.2 Kg
  • Min. Weight Limit: 6.0 stone / 40.0 Kg
  • Risk Factor: Very High Risk
  • Warranty: 2 years
  • Cell Deign:  20 figure of 8 cells, 4 static head cells
  • Operating Cycle: 15 minutes
  • Pressure Range: 30-50mmHg
  • Mattress Dimensions (inflated):  198cm x 88cm x 20cm
  • Mattress Weight: 4.2 Kg
  • Power Unit Dimensions: 26.3cm x 11cm x 19cm
  • Power Unit Weight: 2.38 Kg


Electrical

  • Safety Standards:  IEC 601/1 BS5724 -1 (CE , FDA , TUV)
  • Voltage: AC220 - 240V 50Hz 0.06A
  • Noise Level: Below  NC27
  • Power Input: 12w
  • Fuse: T1AH 250V External x 2
