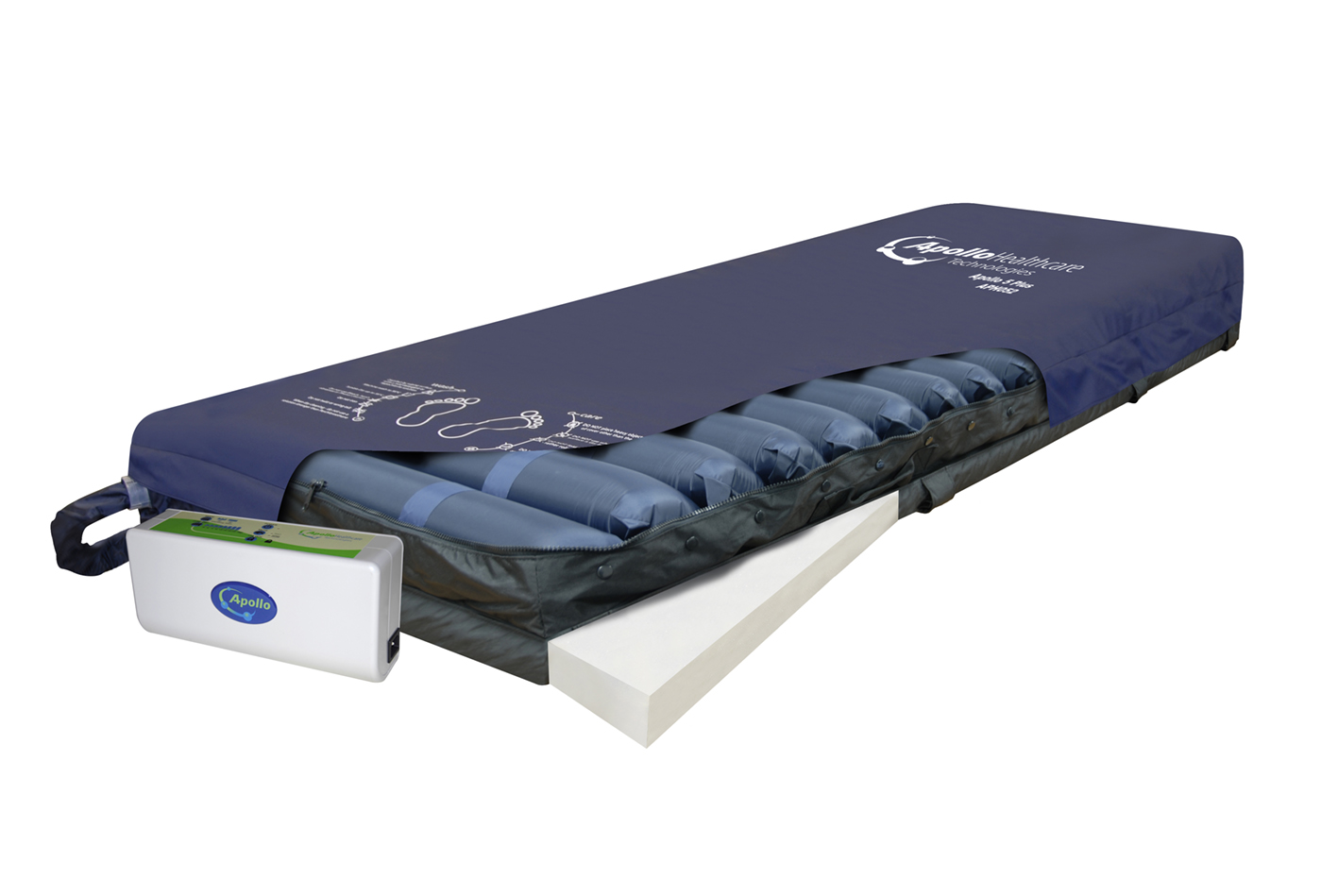

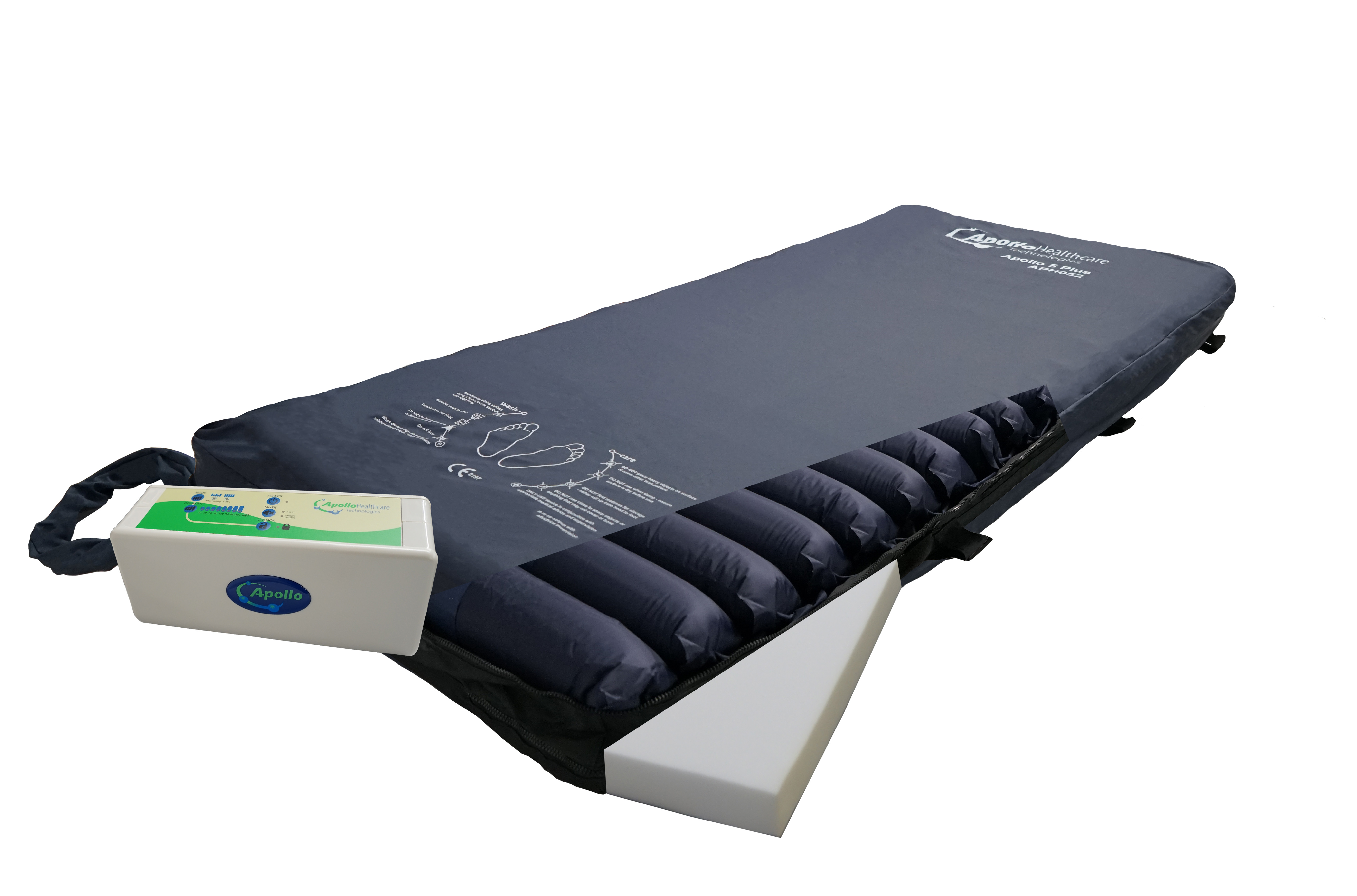

Apollo 5 Plus System

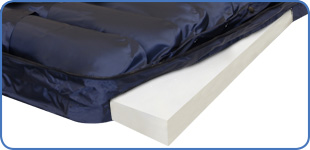

The Apollo 5 Plus replacement mattress consists of a single set of alternating cells, supported by a covered foam base. The 'Very High Risk' mattress also boasts an easy to use pump that is both quiet and efficient, reducing the need for complex training.

• Full replacement system
• Adjustable weight settings
• Designed for users at very high risk, or have existing tissue damage
• Manual adjustment to user's body shape and position for optimum pressure care
• Dynamic therapy alternating action for lower interface pressures and gentle capillary stimulation
• Static Mode enables stable surface for safer patient transfers & handling
• Humidity management to help prevent tissue breakdown and skin maceration
• Multi-stretch PU cover is both waterproof and vapour permeable, reducing shear and friction, and can be easily wiped clean or completely removed for laundering
• PU cover to prevent fluid ingress and internal mattress contamination
• Provides 12 hours backup system to remain inflated during power failure or patient transport
• Clinically effective against bacteria / viruses, with proven resistance to MRSA
• Fire retardant to Standards BS7175 Crib 5
• Clear and simple controls reduces need for complex training
• External air filters for easier maintenance
• Removable cells and connectors for lower cost servicing
• Quick access CPR for emergency mattress deflation
• High frequency welded seams reduce the risk of fluid ingress, supporting infection control protocols

• Product Code: APH052
• Mattress Dimensions (inflated): 200cm x 90cm x 17.5cm
• Mattress Weight: 8 kg
• Max. Weight Limit: 31.5 stone / 200 kg
• Min. Weight Limit: 6 stone / 38 kg
• Cell Configuration: 15 alternating cells plus 3 static head cells
• Risk Factor: Very High Risk

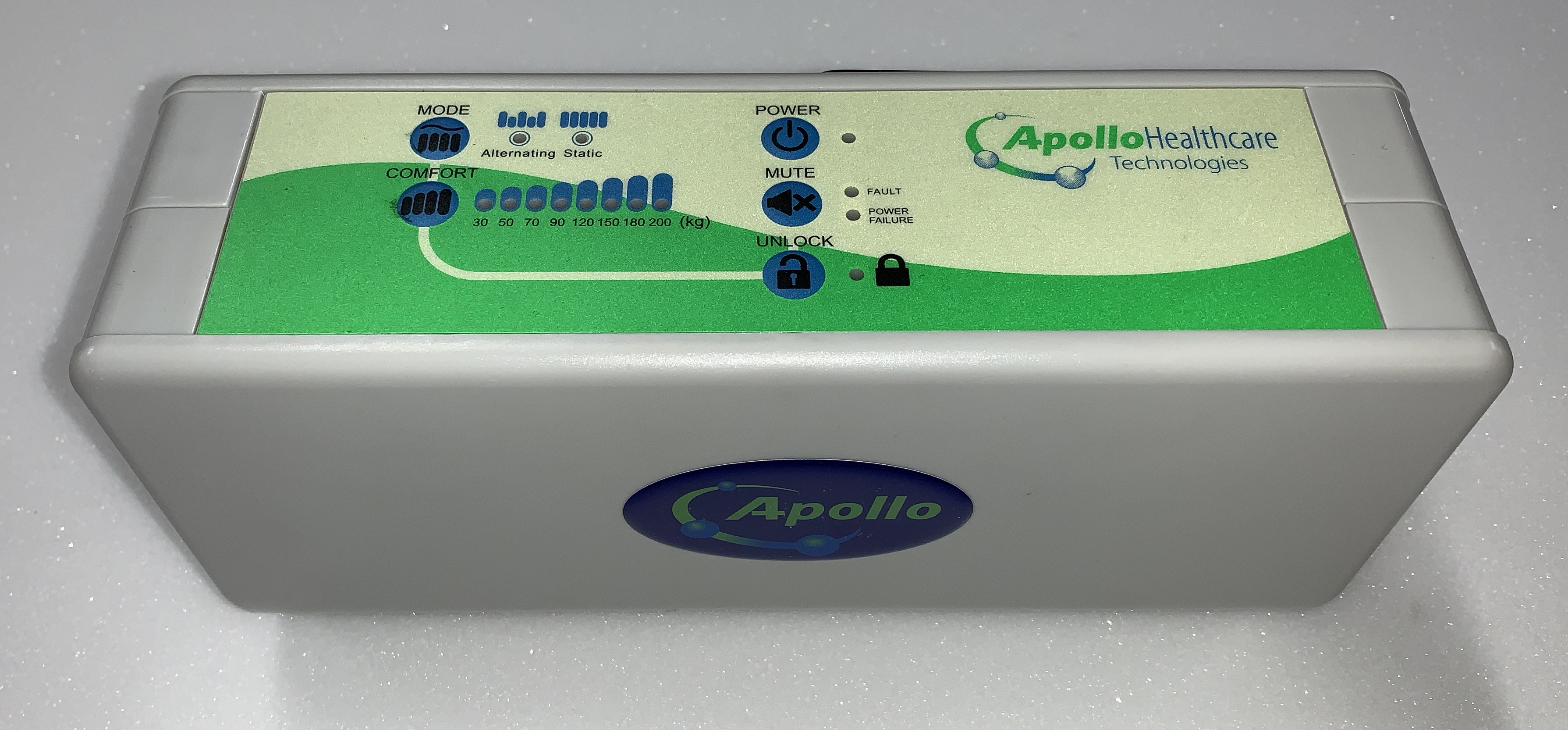

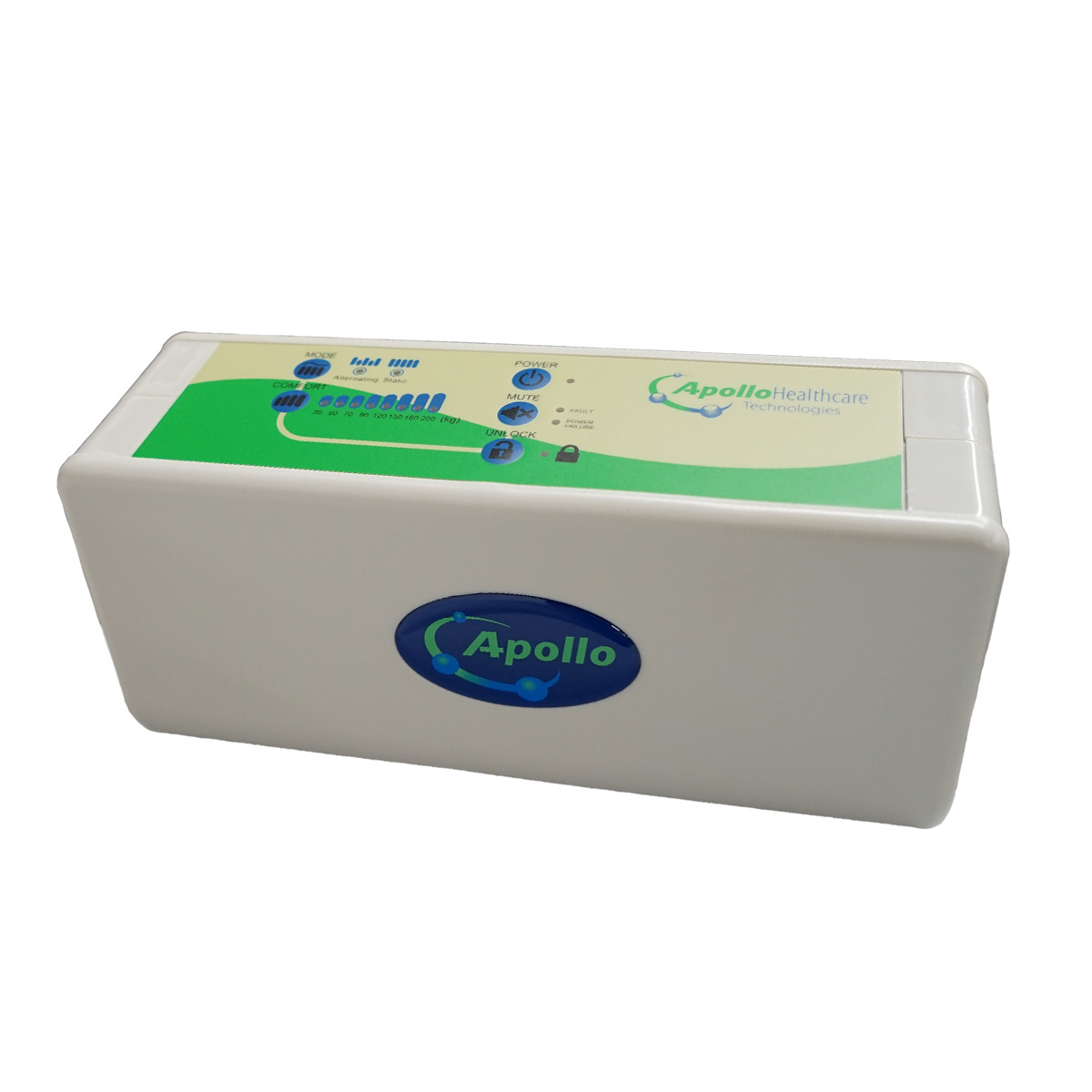

Electrical

• Pump Dimensions:  27.5cm x 13.5cm x 9cm
• Pump Weight: 1.4 kg
• Pressure Range: 30-80 mmHg
• Cycle Time: 9.6 minutes
• Power Supply: AC 220-240V 50Hz, 0.09A
• Noise Level: Below NC27
• Fuse Rating: 500mA
• Medical Classification: Type BF Applied Part
• EMC Standards: BS EN 60601-1, BS5724-1 (CE, FDA, TUV)
