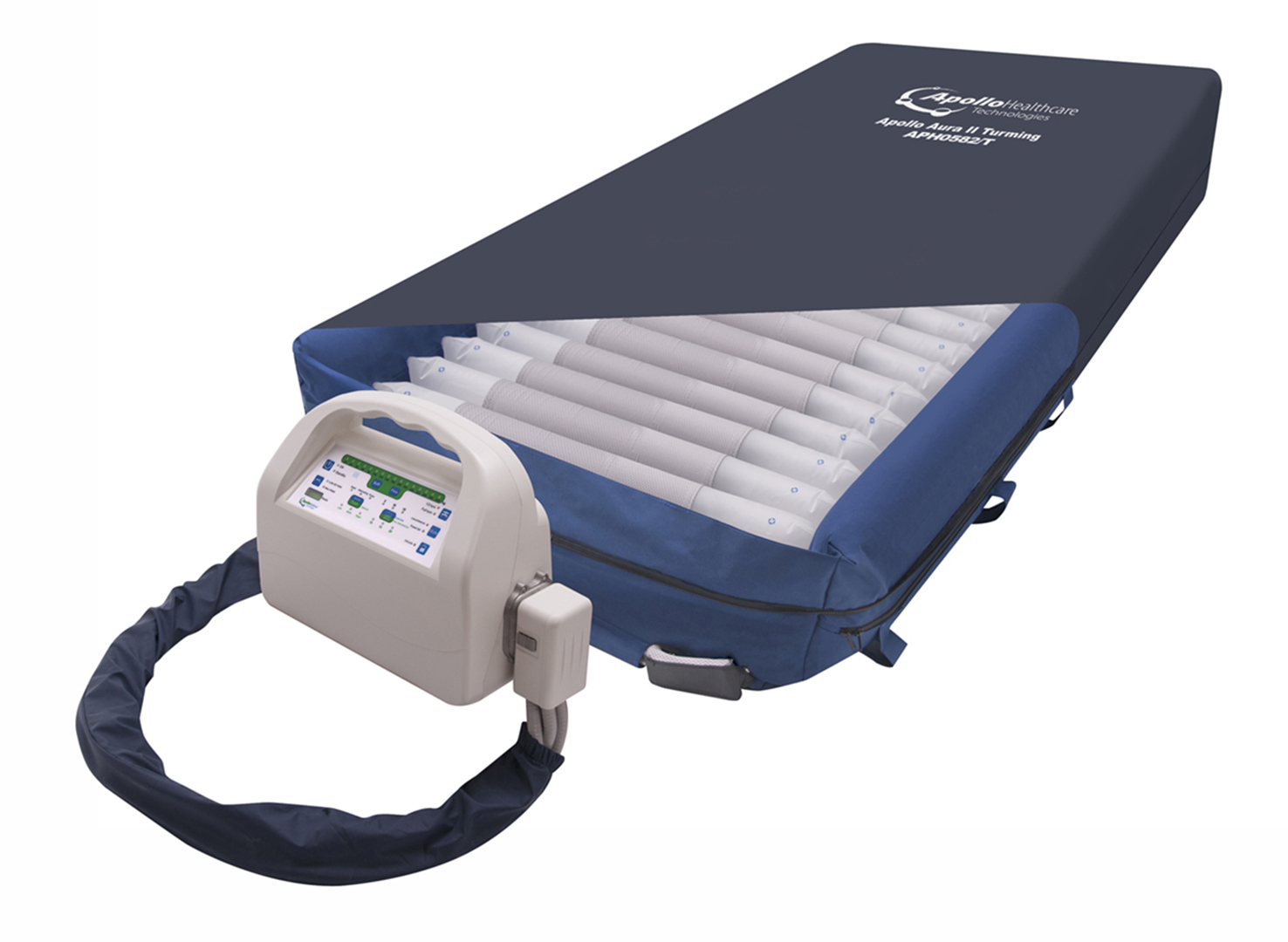

Aura Turning Low Air Loss™

The Aura LAL Turning replacement mattress consists of 20 low air loss 8 inch cells and a 2 inch base. The multifunctional pump unit is designed for users at a 'Very High Risk' of developing pressure ulcers, or have existing tissue damage.

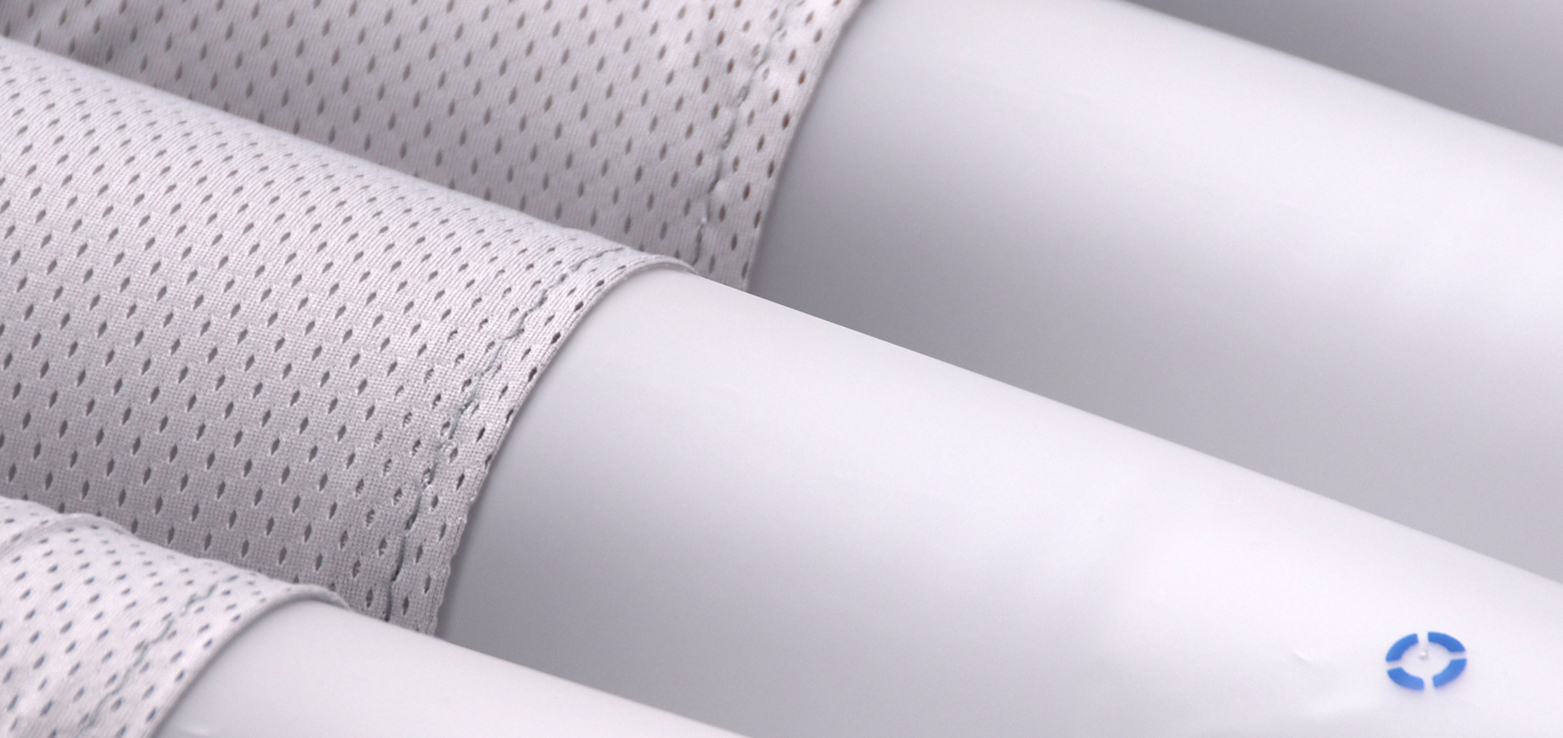

The cells are ventilated to provide maximum air circulation across the mattress and reduce the build up of heat and moisture on the skin. The subsequent reduced pressure on the vulnerable bony areas enhances patient comfort giving further aid to wound management.

The system includes Timed Turning, Alternating, Pulsate and Static functions with a high quality PU cover that is washable up to 95 degrees ensuring the strictest infection control policies are adhered to. The easy to use pump reduces the need for complex training.

The Aura LAL is suited to both the hospital and hospice nursing care environments.

  • Low Air Loss System that reduces the build up of heat and moisture on the skin
  • Cells and cover can be removed and laundered
  • Adjustable comfort settings 1. Alternating  2. Pulsate  3. Static
  • Audible and visual alarms
  • Auto-lockout function
  • Designed for users at very high risk, or have existing tissue damage
  • Manual adjustment to user's body shape and position for optimum pressure care
  • 10, 20, 30 & 60 minute adjustable turning cycles
  • Auto-Firm feature for max inflation when transferring patient and has auto-recovery after 30 minutes
  • CPR deflation in 20 seconds

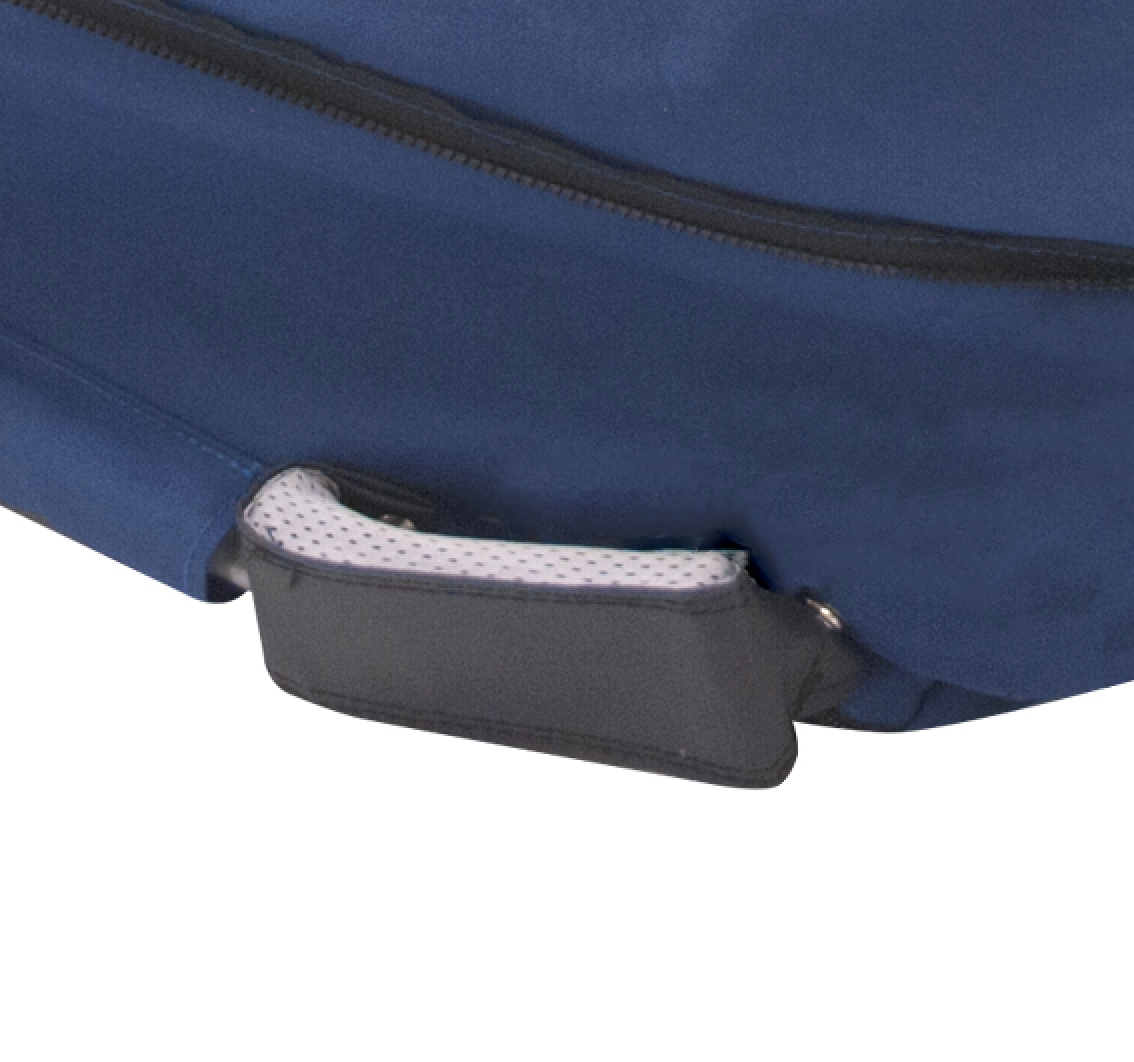

  • The (2) side bolsters provide the patient with optimal comfort while creating a safe environment during rotation
  • The Aura LAL Turn system incorporates the functions of lateral rotation and low air loss in one unit
  • The feedback sensor technology of the control unit will equalize pressure and maximize patient comfort
  • The lateral rotation mode will assist in pulmonary blood flow and mucosal drainage, while the on demand low air loss function will provide a cool and dry surface for prevention and treatment of pressure ulcers
  • The mattress is constructed of (20) 8” high split-air cells over a 2" foam base with (2) 10" high side air bolsters
  • The user friendly high flow control unit offers 10 adjustable comfort levels turning cycles and maximum turn angle adjustment of up to 40 degrees full position adjustable turning positions up to 40°
  • PU cover to prevent fluid ingress and internal mattress contamination
  • Cover is easy to remove for cleaning
  • Clinically effective against bacteria/viruses, with proven resistance to MRSA
  • Waterproof with high vapour permeability for improved infection control
  • Cover Fire retardant to Standards BS7175 Crib 5
  • Clear and simple controls reduces need for complex training
  • External air filters for easier maintenance
  • Removable quick release cells and connectors for lower cost servicing and repair
  • Quick access CPR for emergency mattress deflation
  • The mattress cover can be wipe down or completely removed and laundered
  • Up to 95°C to aid decontamination protocols
  • Product Code: APH058/T
  • Max Weight Limit: 50 stone / 320 Kg
  • Min Weight Limit: 6.3 stone / 40 Kg
  • Risk Factor: Very High Risk
  • Warranty: 2 years
  • Pressure Range: 10~40mmHg  Adjustable  level pressure range 10-60 Minutes
  • Mattress Dimensions (inflated): 200cm x 28cm x 25cm
  • Mattress Weight: 7.5 Kg
  • Power Unit Dimensions:  39cm x 28cm x 18.5cm
  • Power Unit Weight: 6.2 Kg

Electrical

  • Safety Standards:  CE, cUL
  • Voltage: AC100-120V 50/60Hz, 5.0A (120V system)
  • AC220-240V 50/60Hz, 3.0A (230V system)
  • Noise Level: 46Dba (at comfort level 5, 1m from pump)
  • Power Input: AC220-240V 50/60Hz, 3.0A
  • Fuse: T5A/250v (for 120V system)
  • T3A/250v (for 230V system)
