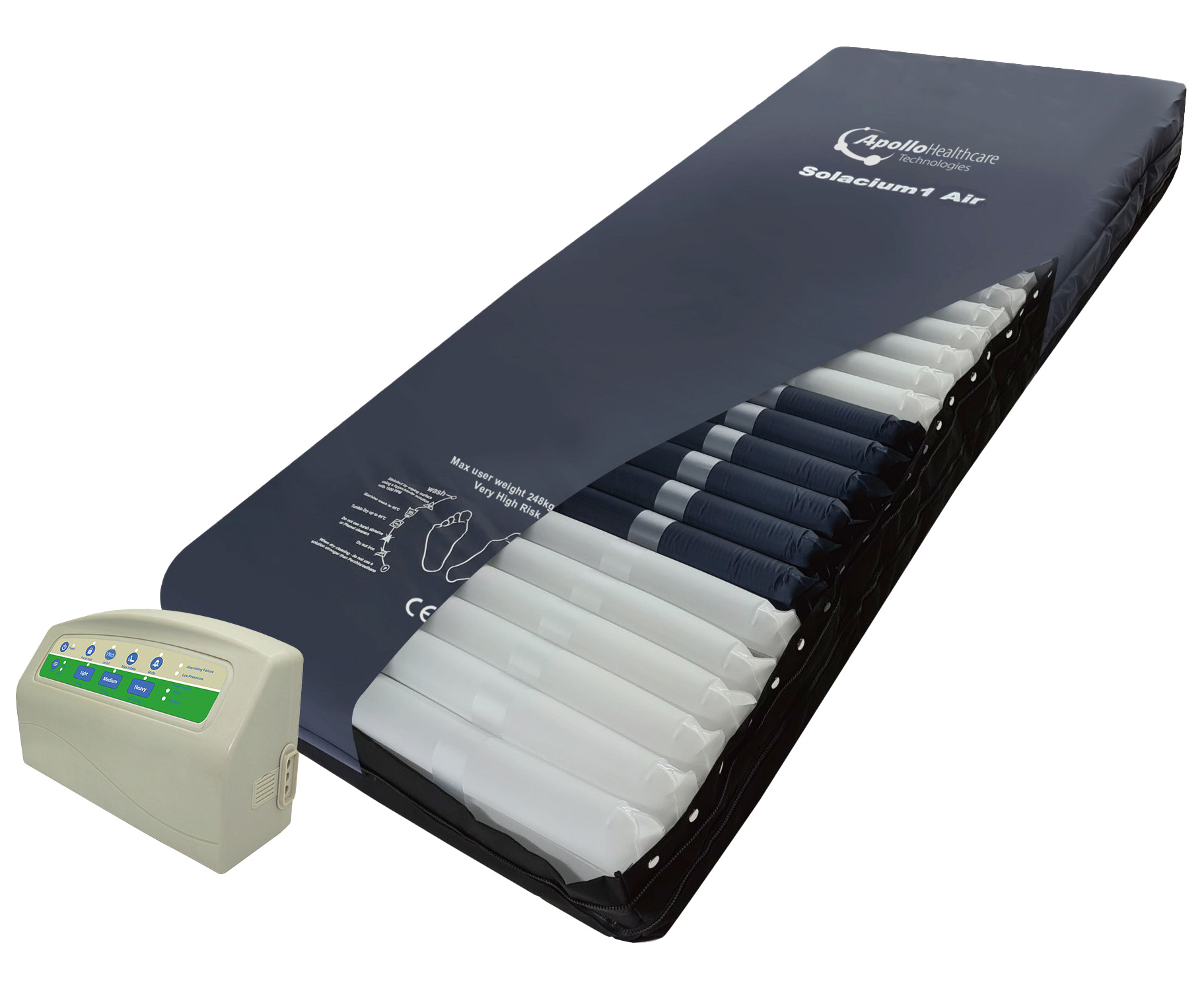

Solacium 1 Air System

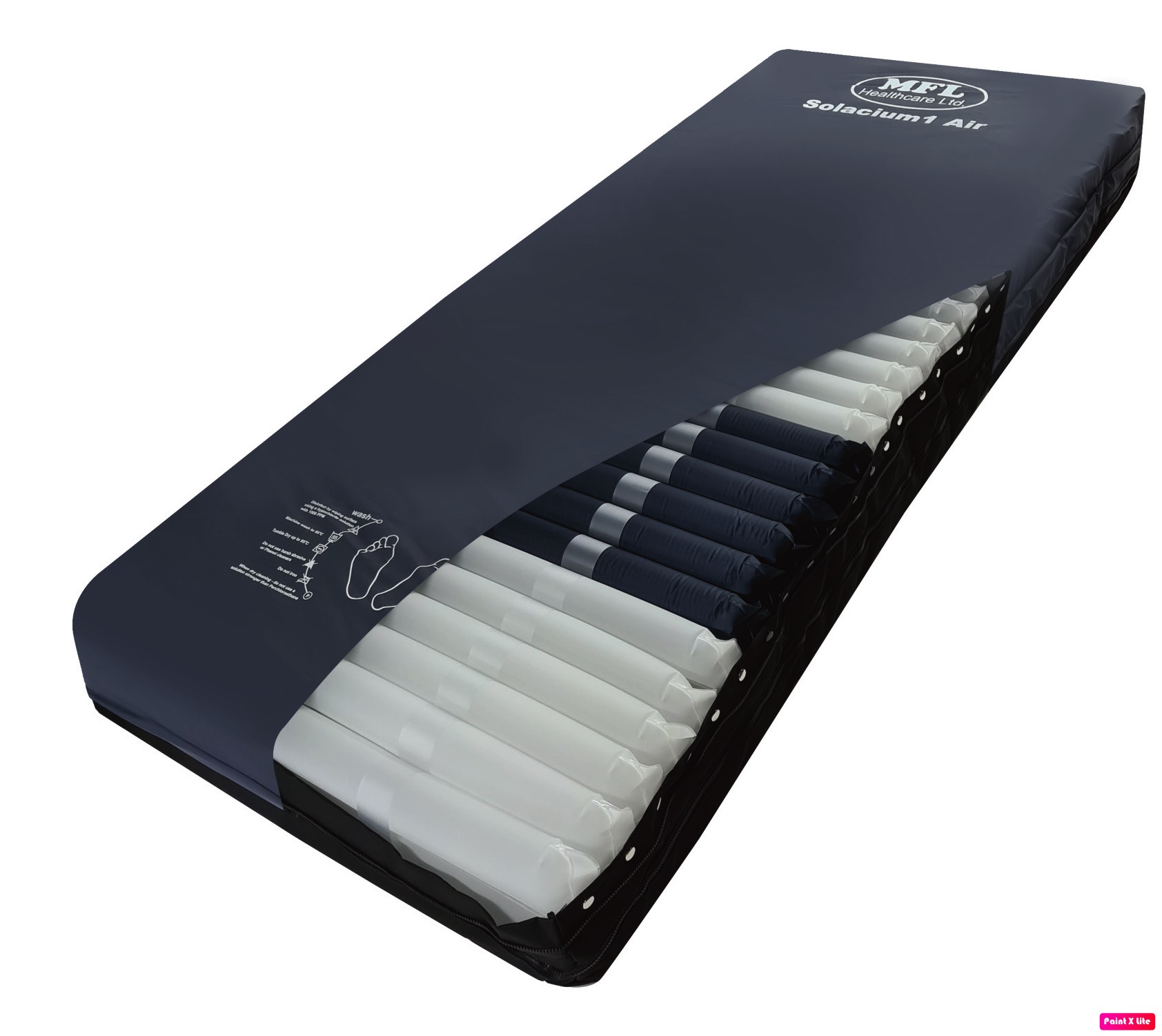

The Solacium 1 Air Mattress consists of 29 dual cells (58 in total) The cell configuration is of 29 figure of 8 cells, the top half of the cell alternates, whilst the bottom half, remains inflated at all times. This ensures maximum Pressure Relief, combined with maximum comfort for the user, which in most cases is shown to improve sleep patterns. The Mattress also has a removable foam base, to add extra comfort and as a last resort to provide a static support surface, in the unlikely event of complete deflation. The Pump auto adjusts to the user’s weight, with the addition of 3 simple comfort level settings. The system will automatically be pre-set to a medium comfort setting, and a 10-minute time cycle unless changed by the care giver.

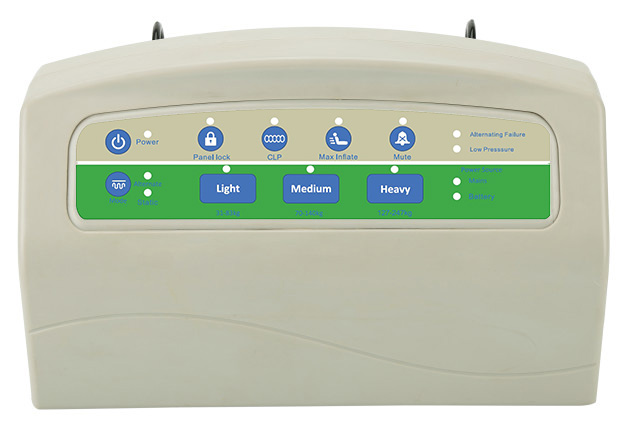

- The Solacium pump is fitted with a Lithium Ion Battery which is constantly charging when in use via the mains electrical supply. In the event of power loss this will give up to 8 hours of power to the system until such time as the mains power is returned, or in the unlikely event of a mechanical fault within the system, until this can be rectified
- An additional function of the battery is that it can also be used for a quick initial inflation of the system, which takes a maximum of 8 minutes, without the need for mains power
- Dynamic therapy for alternating action for lower interface pressures and gentle capillary stimulation
- Constant Low Pressure (CLP) providing immersion therapy support surface below capillary closure providing increased comfort
- Max Inflate option to inflate the mattress to maximum pressure to allow safe patient transfer
- Audio and visual alarms to differentiate between low pressure, and alternating failure
- Multi-stretch PU cover is both waterproof and vapour permeable, reducing shear and friction, and can be easily wiped clean or completely removed for laundering
- Provides 12 hours backup system to remain inflated during power failure or patient transport
- Clinically effective against bacteria / viruses, with proven resistance to MRSA
- Removable cells and connectors for lower cost servicing
- High frequency welded seams reduce the risk of fluid ingress, whilst the cover also provides the addition of full length double sided zip flaps for added protection
- Product Code: MFL001S
- Mattress Dimensions (inflated): 198cm x 88cm x 15.6cm (Available in Extra Long)
- Mattress Weight: 10.5 kg
- Cell Configuration: 29 cells
- Max Weight Limit: 39 stone / 248 kg
- Risk Category: Very High Risk
- Warranty: 2 years
- Safety Standards: BS EN 597-1 Cig, BS EN 597-2 Match, BS7175 Ignition Source 5
Electrical
- Pump Dimensions: 36cm x 12cm x 21cm
- Pump Unit Weight: 2.8 kg
- Pressure Range: 15-60 mmHg
- Cycle Time: 10 minutes
- Power Supply: AC 100V-240V 50/60Hz, 1.5A Max
- Fuse Rating: T1AH 250V (2 pcs)
- Medical Classification: Type BF Applied Part
- EMC Standards: IEC 60601-1, EN 60601-1, IEC 60601-1-2, EN 60601-1-2, IEC 60601-1-11, EN 60601-1-11, IEC 61000-3-2, EN61000-3-2, IEC 61000-3-3, EN 61000-3-3
